Types of Oil Skimmer:
Being as well-known oil skimmer manufacturers in India, we provide different types according to different need which are given below.
- Belt Skimmer: It relies on a continuous belt, which dips the fluid in order to carry and hoist the oil on the surface.
- Disc Skimmer: This uses a rotating disc that goes through the water full of the oil and collects the oil which is scraped off.
- Drum Skimmer: This is a type that has a rotating drum that entraps oil on its surface; which is scraped off by a scraper blade.

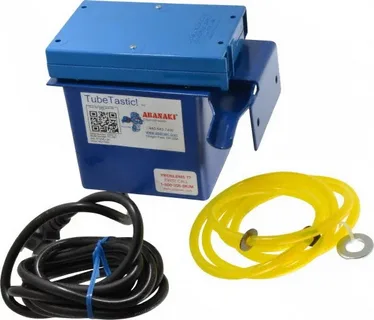

- Tube Skimmer: Oil skimmer suppliers in India uses a floating closed tube, which is made of plastic attracting oil and then passes through a drive unit to squeeze clean.
- Weir Skimmer: This is a passive device that moves the oil at the very top of the liquid over a weir to collect it.
- Floating Suction Skimmer: It is a skimmer that is floating on the water surface, which collects the oil and water and drains them to be separated further down the stream in floating oil skimmer.
Technical Specification of Oil Skimmer:
We've added below a specialized table of oil skimmer in India that provides further technical specification information
| Technical Specification |
Common Range / Details |
| Oil Removal Capacity |
4-5 LPH to 60 LPH (Liters per hour). Note: Capacity is dependent on oil viscosity and thickness. |
| Belt Width |
50 mm to 200 mm (or up to 500 mm for some models). |
| Belt Material |
Oleophilic Polymer, Polyurethane (PU), Polystyrene, Elastomer, or Stainless Steel (SS304). |
| Motor |
AC Geared Motor. Available in single-phase and three-phase configurations. |
| Motor Rating |
25 Watts or 0.25 HP (0.18 KW), 415 VAC (+/- 10%), 1440 rpm. |
| Temperature Capacity |
Up to 100°C for some models. |
| Key Features |
Compact design, low maintenance, and fully automated. Can be used with an optional oil concentrator to remove residual water. |

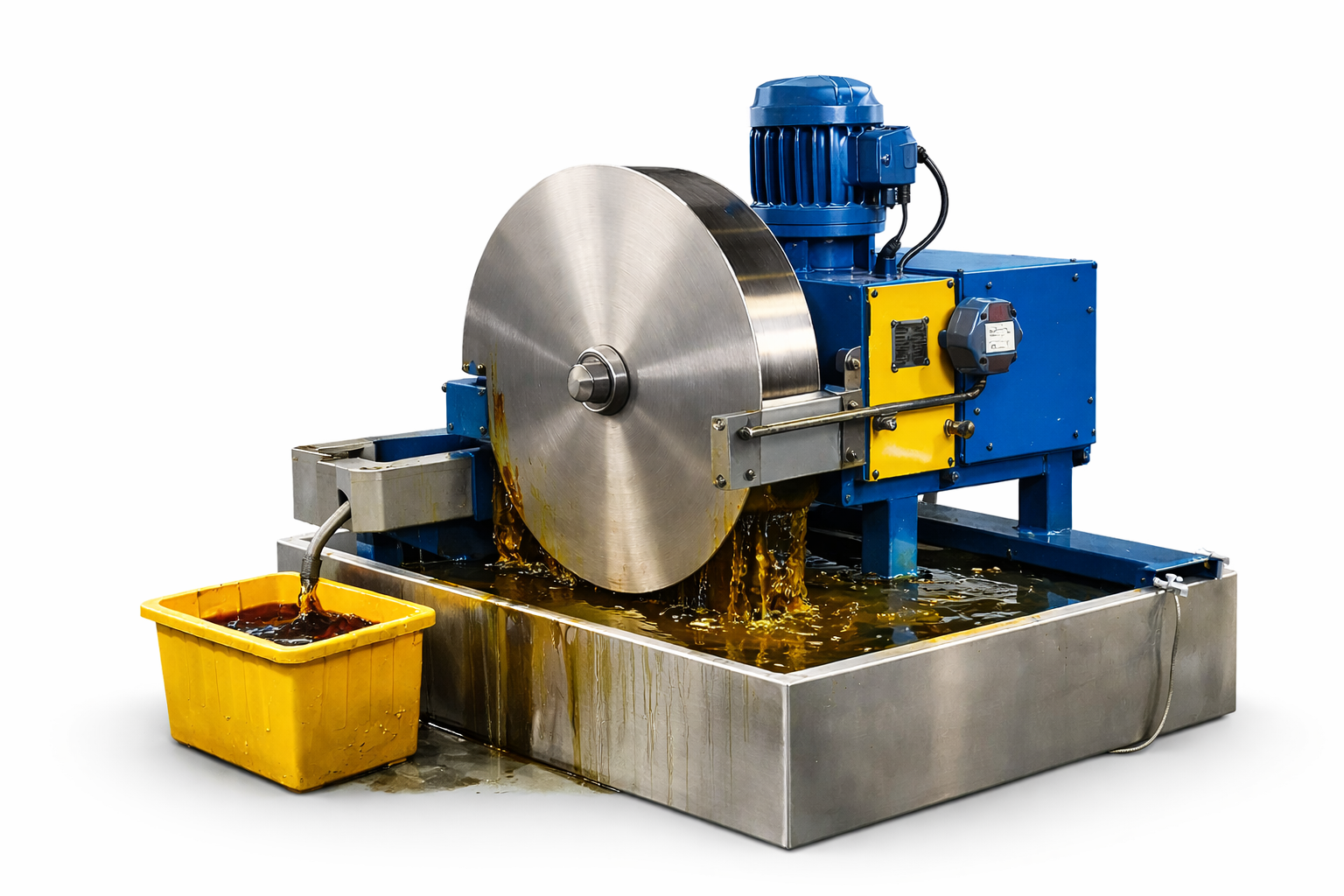

Disc-Type Oil Skimmer Specifications
| Technical Specification |
Common Range / Details |
| Oil Removal Capacity |
4-5 LPH. Note: Capacity is dependent on oil viscosity. |
| Disc Diameter |
330 mm to 440 mm. |
| Disc Material |
Stainless Steel (SS304). |
| Motor |
AC Geared Motor. |
Benefits and Features of Oil Skimmer
As an oil skimmer suppliers in India, we recognized the points and needs according to that benefits are provided which are given below.
-
Cost Saving: Recovery and removal of oil enable skimmers to save a significant amount of money on waste disposal. Reduced oil in your coolant or wastewater translates to reduced amount of destructive waste to treat or transport.
-
Extended Fluid Life: Bacterial growth and rancidity caused by the presence of tramp oil in coolants and process fluids can be prevented through the removal of tramp oil, which further extends the life of the fluid, and decreases the rate at which fluids are changed.
-
Increased Water Quality: Oil recovery skimmer is very efficient in the separation of free-floating oil to assist the industries meet the high standards of environmental discharge and avoid pollution. This is an important process prior to additional treatment of water.
-
Improved Operational Performance: There is improved working environment with cleaner fluids. Eliminating oil will minimize smoke, foul odor, and chances of fire hazards, besides keeping pumps, filters and other equipment clogging and undamaged.
-
Durability and Reliability: Oil skimmer manufacturers in India are set up to run 24/7, and require little maintenance. Highly-built and easy-to-operate mechanism makes them a long-lasting use in the rough industrial surroundings.
Applications of Oil Skimmer
We serve as well-known oil skimmer manufacturers in India, it is machines and industries which are given below.
-
Wastewater Treatment Plants: Industrial oil skimmer is very important in this situation to extract floating oils and grease of the incoming wastewater before it is taken through the treatment process.
-
Metalworking and Machining: This is applied to coolant sumps and parts washing systems to take off tramp oil which leaks out of machine oils. This increases the life of tools, enhances part finish, as well as increases the life of the coolant.
-
Food Processing: Vital in the removal of fats, oils and greases (FOG) in wash-down and process water. This will eliminate clogs in the drain, decrease sewer surcharges, and offer the possibility of recovering useful by-products.
-
Steel Mills: Oil skimmer suppliers in India use the steel mills to eliminate the lubricating oils and greases from the process water in rolling and quenching activities. This helps in avoiding contamination, enhances efficiency, and protects equipment.
-
Oil and Gas Refineries: It is employed in the separators and effluent treatment systems to retrieve hydrocarbon oils within the process water. This not only purifies the water to be re-used or discharged but also allows the recovered oil to be re-processed.
Why Choose Us for Oil Skimmer?
-
Reliable Service: Our products are designed to work the hardest and the least, and they will be giving you reliable service over the years.
-
High Efficiency: Oil skimmer manufacturers in India will be designed to retrieve the most oil with minimal amount of water content.
-
Customized Solutions: We can provide different types of skimmers and options to fit your unique industrial requirements and operational environment to the letter.
-
Expert Support: Assembly through to maintenance: Our expert personnel will be on-hand to support you with the installation and maintenance of your system to achieve maximum efficiency.
We are well established oil skimmer manufacturers in India and suppliers in India represent such a simple, but effective answer to such a complicated industrial issue. These are effective in eliminating floating oils that are harmful thus resulting in a congenial work environment and saving a lot of money. These systems are an intelligent investment in any industry by keeping equipment alive, minimizing waste and compliance with the environment. Mop Skimmerare a sure and efficient initial measure in any system of managing oily water. Contact Us for more details.
